Eeprom T-Con Dump

[Admin]

32AP11S4LV1.1

T-CON 32AP11S4LV1.1

Panel LTF320AP13

IC3 24C64WP

IC4 24C02



[Admin]

t-con 400W2C4LTV0.1

400W2C4LTV0.1 con-t 24c16



[Admin]

T-con t370hw02(panel t315hw02 v.7)
t-con t370hw02
cpu auo-12401(u300)
eeprom 24c64(u301)
panel t315hw02 v.7

shivaki stv-32l6



[Admin]

ltm185at05s2lv0.5_hf
CPU / MCU: luu4321m1r-Q5
EEPROM / FLASH: 24c16



[Admin]

V320B1-L06 Rev. C1 (T-CON - V320B1-C03)
V320B1-L06 Rev. C1
T-CON-C03-V320B1
Eeprom - 24LC128
CPU / MCU: TDA15351HV
EEPROM / FLASH: 25L4005A



[Admin]

M190EG01 V0



cpu / mcu: Auo-008
eeprom / flash: 24c32



[Admin]

MDK 336V-0 N (19100105)
TX-32LX80M the PANASONIC
PANEL AX080A010A
CKALER TCON 102A-F
24C64

CPU / MCU: TCON 102A-F
EEPROM / FLASH: 24C64



[Admin]

Lc470due-sfr1 p / n 6870-0444a
cpu / mcu: Tl2354ep_s
eeprom / flash: 24c08



[Admin]

CX315DLEDM (T-CON - MT3151A05-3-XC-1)

CX315DLEDM

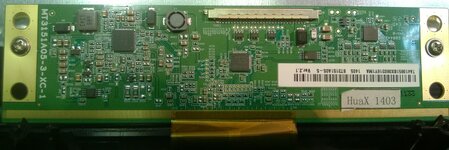

T-CON-MT3151A05-3-XC-1
Eeprom T-Con - 24C32 firmware leaked after replacing OB2273 in BP programmer Triton + V5.7TM.

EEPROM / FLASH: T-con EEPROM 24c32
PDP / LCD / OLED panels: OLED panel CX315DLEDM



[Admin]

TOSHIBA 32AV833N; SASSY: 32AV833N REV: 1.03

TOSHIBA 32AV833N; SASSY: 32AV833N REV: 1.03
TL2417MC
24C04 LC320WXH (SC) (C1)

CPU / MCU: TL2417MC
EEPROM / FLASH: 24C04
PDP / LCD / OLED Panel: LC320WXH (SC) (C1)



[Admin]

Chimei V400H1-L03 Rev.C1

LCD panel 40 "V400H1-L03 CHIMEI Rev.C1
TCON: V400H1-C03
: File content
U2 24LC128I Microchip EEPROM SO8 Panel repair after-reverse colors - replace 18 + 1 voltage buffer IC AS19 (EC5579) QFP48 with cooling pad. I use substitute IC G1574 panel and is OK.

CPU / MCU: unknown
EEPROM / FLASH: I2C EEPROM
PDP / LCD / OLED Panel: Chimei V400H1-L03 Rev.C1



[Admin]

panel: Sharp LK400D3LB43, t-con: Sharp CPWBX RUNTK DUNTK4593TP

panel Sharp LK400D3LB43

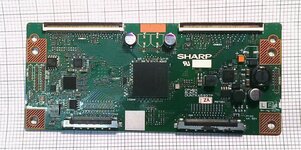

t-con Sharp CPWBX RUNTK DUNTK4593TP
FLASH IC100 EN25P80
FLASH IC701 W25X20B

EEPROM/FLASH: EN25P80, W25X20B
PDP/LCD/OLED Panel: OLED



[Admin]

v2 Philips 37pfl7662D-12-V1 Samsung LE37M86bdx Châssis de AU Optronics T370HW02 (Main Board): LC7.2E.LA


Firmware T-Con Philips 37pfl7662D-12 panneau et Samsung LE37M86bdx T370HW02.V1 panneau T370HW02.V2 100% de travail. T Con t370hw02 x0


EEPROM/FLASH: 24c64



[Admin]

Samsung UE40F6800ABXRU T-Con (Main Board): LSF400HF02 BN95-00858A BN41-0193
Clignotant T-con LSF400HF02 BN95-00858A BN41-01939B panneau CY-GF400CSLV4V de votre téléviseur

CPU/MCU: SDP1203
EEPROM/FLASH: SPI IC13 W25X40CLSIG
PDP/LCD/OLED Panel: CY-GF400CSLV4V



[Admin]

LG Display LC260WXE-SBB1 (Main Board): 6870c-0263b
T-Con:LC260WXE-SBB1
LVDS: TL2417MC
CPU / MCU: TL2417MC
Eeprom: U2=24C04
VIN=12,3
VDD=15,1
VGH=26,3
VGL=-7,1
VCC=3,4
VCC2=1,8
P12V=12,3
VCOM=7,5
FLK=2,4
VST=-7,1
VGH_O=-7,1
VGH_E=-7,1



[Admin]

EEPROM / FLASH: AT24C32AN
Panneau PDP / LCD / OLED: LCD de Sony KDL-32S3000




De dysfonctionnement Description: téléviseur Sony KDL-32S3000 ont des couleurs inverses.
Package AS34-G (EC5534) 14pin TSSOP Bad U8 SMD-14.
Je l'utilise substitut AD8567A IC de 19 cassées "panneau LCD L01 CHIMEI M190E2 Rev.C1.
Autres substituts: HX8904TA , HX8904TB, 5420CR, i7514HS, EL5411 Supply U7 de tension et U8 de 15.5V est principal tension d'alimentation de 12V est TCON U7 EC48324 est ok, est sans doute également à côté substitut de AS34-G CPU: U1 AUO-016K1 SMD 208 broches multiples DC- convertisseur DC: U2 BD8166EFV U401: Latice LC406-10I réseau logique programmable U11:. bus I2C EEPROM Atmel AT24C32AN



[Admin]

samsung la40s81b (Main Board): t-con t400xw01 v0 ctrl bd
PDP/LCD/OLED Panel: t400xw01 v.1
eeprom 24c32



[Admin]

samsung LEA40A330J1 (Main Board): t-con t400xw01 v5 ctrl bd

EEPROM/FLASH: 24c32
PDP/LCD/OLED Panel: t400xw01 v.6



[Admin]

SONY KDL-32EX343 (Main Board): T-Con V320BJ3-XC01
CPU / MCU: CM1801B
EEPROM / FLASH: M24C128
Panneau PDP / LCD / OLED: V320BJ6-PE1



[Admin]

Main Board: 17MB26-2
CPU/MCU: CM2677B-NQ
EEPROM/FLASH: 24LC128
PDP/LCD/OLED Panel: V420H1
